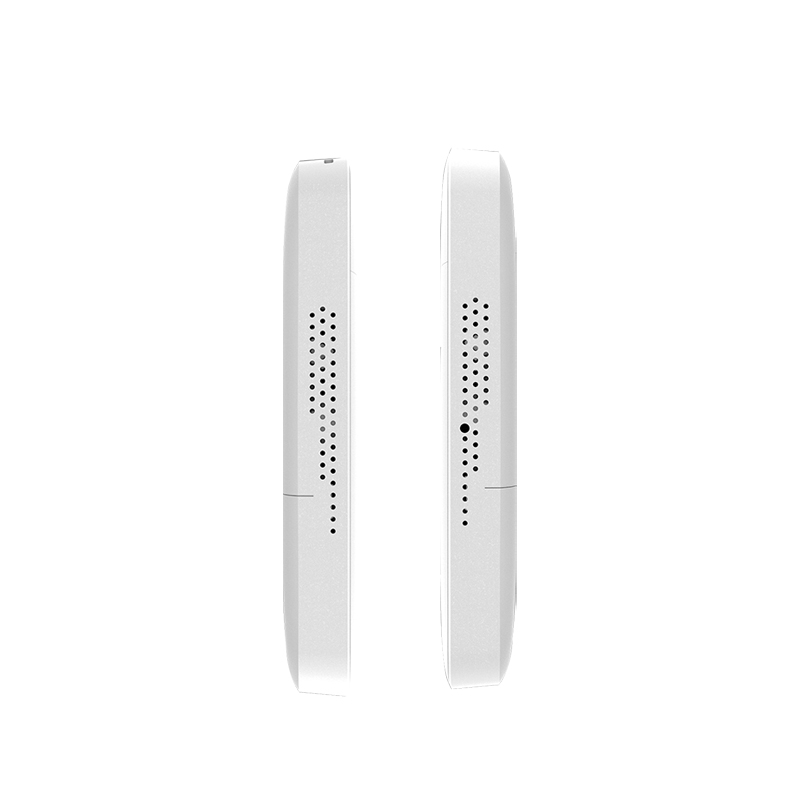

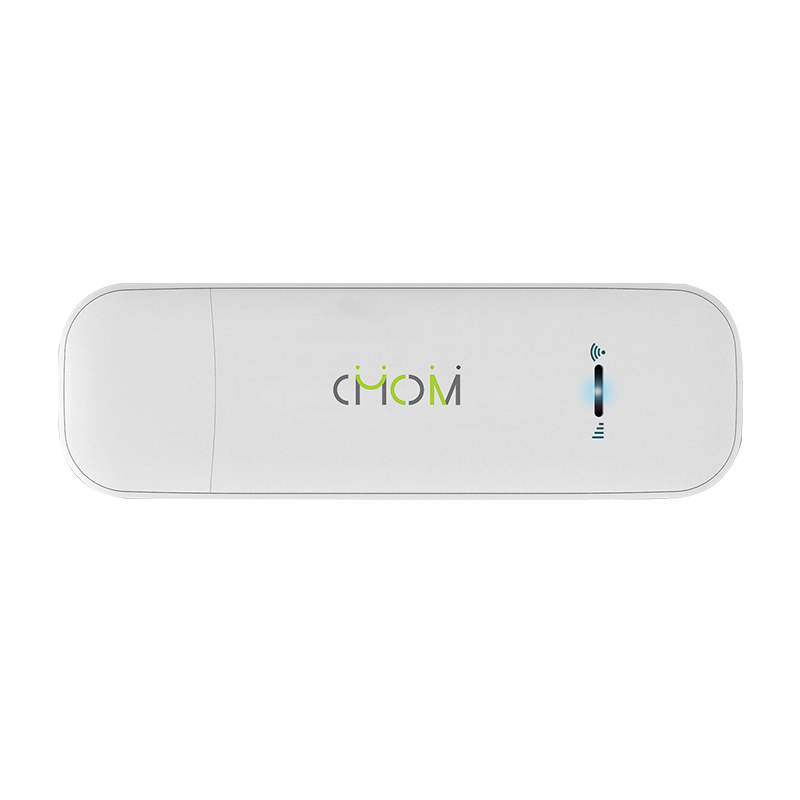

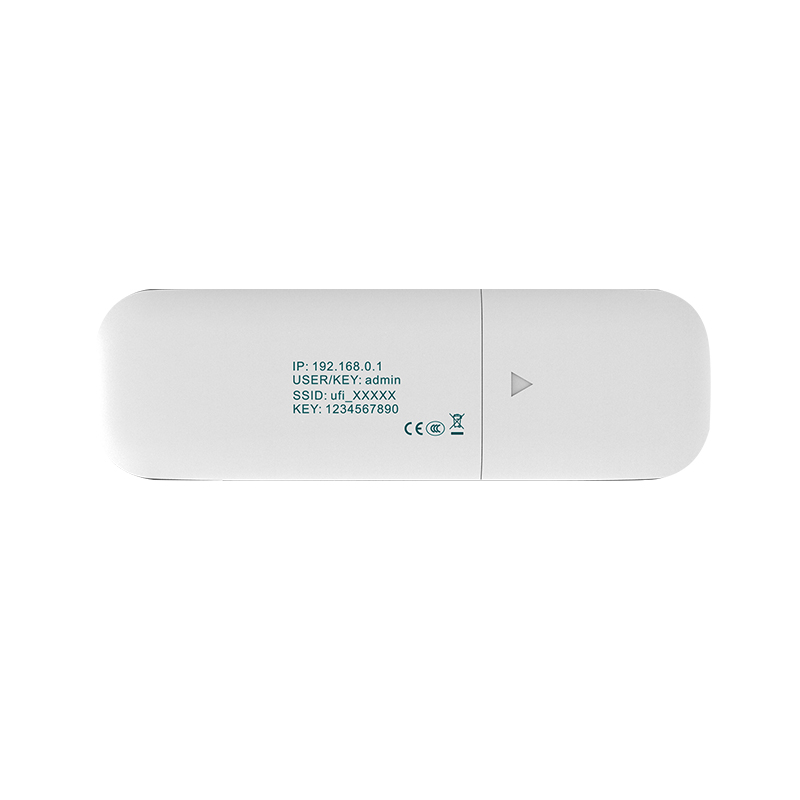

4G USB Modem/Dongle/Wingle

Name: 4G USB Modem/Dongle/Wingle
Rating: 4.8 (95 reviews)

Product Detail

Item	Sub Item	SPEC	Note
WAN	Model	UF204
Band	FDD-LTE	Band FDD B1/B3/7/20 or FDD B28 or FDD B1/B3/B5	TBD/Frequency is customized
Band	TDD	B38/39/40/41	TBD/Frequency is customized
	3G WCDMA	2100MHZ
Power Level	FDD LTE	Power Class 3（23 +/-2dBm）
Sensitivity	FDD LTE	-93 dBm(20MHZ)
Data Rate	FDD-LTE	3GPP R9 ,Category 4, DL 150Mbps UL 50Mbps
LAN
Band	WIFI IEEE 802.11b/g/n	ISM 2.400~2.484GHz
Power Level	WIFI IEEE 802.11b	>10dBm
	WIFI IEEE 802.11g	>10dBm
	WIFI IEEE 802.11n	>10dBm
Sensitivity	WIFI IEEE 802.11b(11M)	-76dBm@ 8%BER
	WIFI IEEE 802.11g(54M)	-65dBm@ 10%BER
	WIFI IEEE 802.11n(72.2M)	-64dBm@ 10%BER
Data Rate	WIFI IEEE 802.11b	11/5.5 Mbps
	WIFI IEEE 802.11g	54/48/36/24/18/12/9/6 Mbps
	WIFI IEEE 802.11n	150(40Mhz)/72.2/65/58.5/52/39/26/19.5/13/6.5 Mbps
System
2G/3G/4G setup	Network Selection	Manual, Auto	Supported
	Network Selection	Setup by user
	Interoperability	TDD-LTE & TD-SCDMA，TD-SCDMA & GSM, TDD-LTE & UMTS, FDD-LTE & TD-SCDMA, FDD-LTE $ UMTS, UMTS & GSM	Supported
	SMS	SMS over SGs Func at LTE	Supported
	SMS	SMS's receiving and reading	Supported
	APN setup	APN setup and revise	Supported
	PIN Func	PIN:Save, revise, lock,unlock	Supported
	DM	CMCC DM	Supported
	Modem Func	Conn to PC by USB	Supported
	Automatically connect reconstructed	Can automatically reconnect to network after off-network in data using	Supported
WIFI setup	Protocol	Max users over 10	Supported
		DHCP client / server, you can set whether to activate the DHCP service assigns IP addresses starting and ending addresses, set the gateway address; Support client list: Displays all the DHCP server to obtain IP address of the host, including MAC address, IP address obtained	Supported
		Support terminal IP address, SSID, communication channel, security type, the administrator account and password factory setting	Supported
		Support SSID and channel settings: Set SSID, communication channel (frequency band WiFi settings, select the range of WiFi support of the band all the available channels), WIFI function on/off, and the SSID broadcast on/off	Supported
		Provides WEP, WPA-PSK, WPA2-PSK, WAPI encryption methods, etc.	Supported
		Support MAC and IP filtering	Supported
Other setup	Driver setup	With the PC operating system automatically recognizes, supports drivers installed automatically	Partly Supported
	Web Server	WEB UI	Supported
	Administrator password configuration	Terminal preset default administrator password, supports password changes	Supported
	SW update	Support local upgrade the firmware of the terminal	Supported
	Time setup	Set user location's time	Supported
	Recovery	Support the terminal restore all settings to the factory default state	Supported
	Reboot	Reboot by SW	Not Supported
	Online help	This menu item provides the user with the help of the course, descriptive information	Supported
Power features	working Voltage	Battery voltage：3.5-4.2V
	Voltage fluctuations	3.5-4.2V DC
	working Current	TBD
	Mobile Power Supplier	supported, output 1A
Environmental Characteristics	Operating Temperature	0℃～+45℃
	Extreme working temperature	-20℃～+60℃
	Storage Temperature	-20℃～+25℃
	Relative humidity	45%～85%
Structure	Weight	TBD
	I/O	Standard USB Port
	Platform	ZX7520V3
	LTE SIM	Single
	T-Flash Card	supported
Port	LTE SIM	3GPP 31.101 and 31.102 standard
	USB	Standard USB Port
	Key	/
	LED	Supported
PC OS	Win7/WinXP	Supported
	MAC OS	Supported
	Windows8	Supported
	Android	Supported
