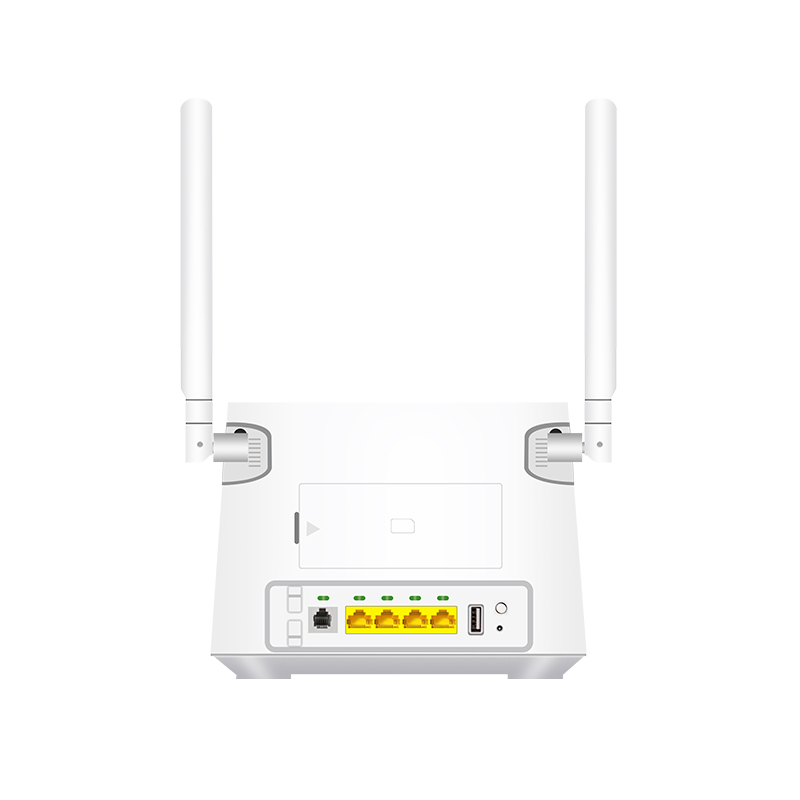

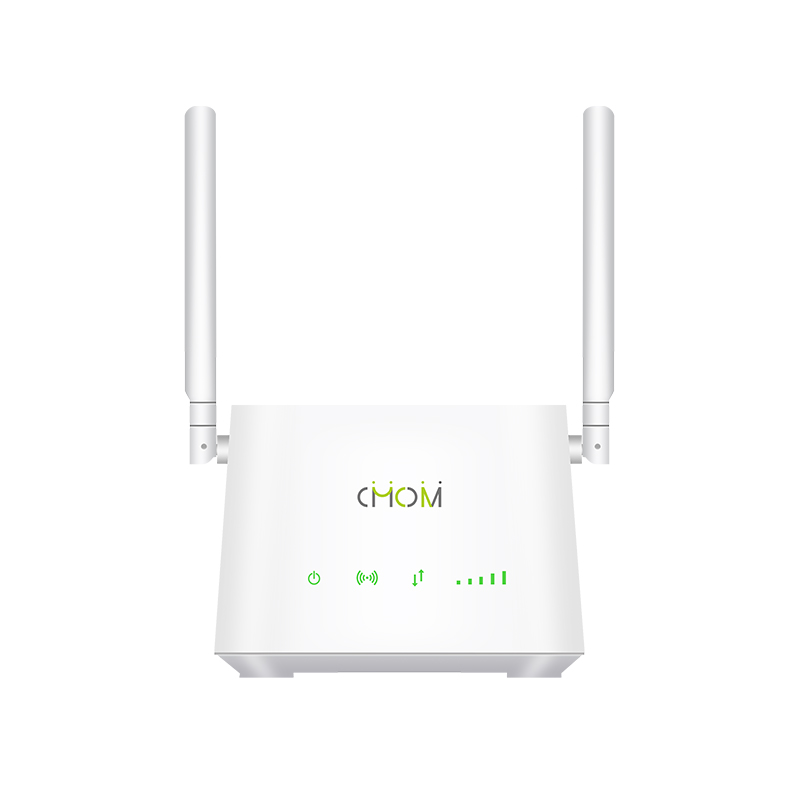

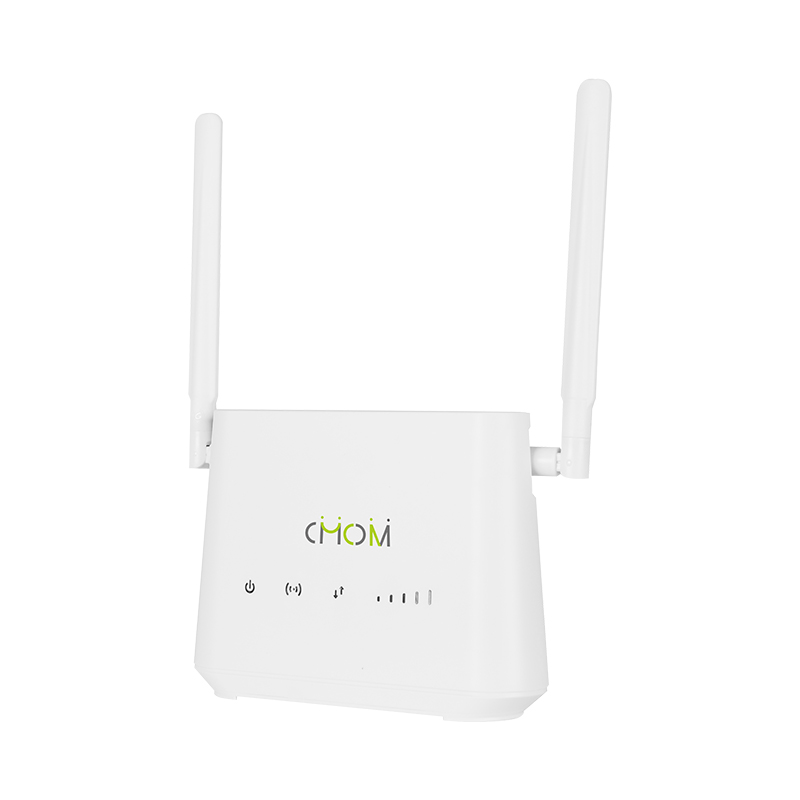

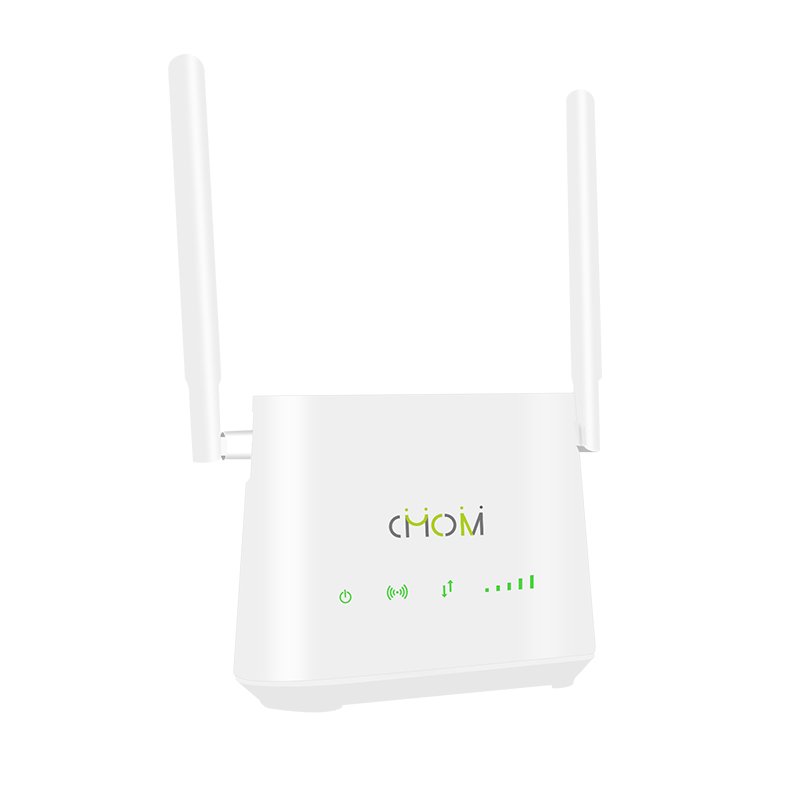

4G LTE HOME Router

Product Detail

R10+ is a highly advanced LTE indoor multi- service product solution

specifically designed to meet integrated data, and 802. 11b/g/n/ac dual bands

Wi-Fi access needs for residential, business and enterprise users. The product

supports advanced Gigabit networking and dual bands Wi-Fi AP functions. It

enables wide service coverage and provides high data throughput and

networking features to customers who needs easy broadband access, hot- spot

Wi-Fi connectivity.

Air Interface	Technical Standard	Compatible with WCDMA, FDD-LTE Default 802.11b/g/n
	Frequency	LTE FDD :B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 （bands can be customized) LTE TDD: B38/B39/B40/41 DC-HSPA+/HSPA/UMTS B1,5,8 EDGE/GPRS/GSM Quad Band Can switch module to cover more frequencies combination
	WIFI	2.4GHz, WIFI 2*2 MIMO，802.11 b/g/n
Performance	Maximum Data Throughput	LTE CAT 6 FDD-LTE 300Mbps/50Mbps
Unit Interface	LAN – RJ 45	The LAN port allows you to connect Modem to PC
	USIM Slot	Support standard 1.8V / 3.0V USIM
	RJ11	Support CPE own voice
	SMA	Support LTE external antennas
Hardware	Receive Diversity	Support Receive Diversity
	MIMO	Support DL 2x2 MIMO
	4G Chipset	UNISOC SL8563
	WiFi Chipset	MT7628N(802.11b/g/n)
	Memory	Flash/RAM: 8+64M Nand Flash
	power consumption	<12W
	Power Voltage	DC12V/1A
	LED	Power Indication LED，WAN Signal Strength， WiFi/WPS Indication LED， WAN/LAN Status LED，Internet Status LED,
	Antenna	Internal Antenna or external antenna
	Buttons	POWER，Reset,WPS
	Ethernet	4 RJ45, 10BaseT/100Base automatic adaptive port
	Reset	Button
	ESD	ESD Protection circuit；Contact±8KV、Air±10KV
	Battery(optional)	Support 2000mAh 18650 battery
Software	SW Update	Local Update
	WIFI Mode	AP mode only, AP+STA is Optional
	WIFI Security	OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
	SMS & Phone Book	Not Support by default, can be customized
	Firewall	Mac/IP address filter, Port forwarding, WiFi Black/Whilte list
	IPv4/v6 dual stack	Support
	Bridge Mode	Support
	Gateway Mode	Support
	DHCP Client in WAN	Support
	DHCP Server in LAN	Support
	NTP Client	Support
	DNS Relay	Support
	DDNS Client	Support
	VPN Pass-through	IPSec/PPTP/L2TP
	UPNP	Support
	HTTP(s) Server	Support
	Dynamic NAT/NAPT	Support
	ALG Support (FTP/SIP/etc…)	Support
	Web Access (Remote/Local)	Support
	TR069	Support ,Built-in web server for web-based configuration
	OTA Firmware Upgrade	Support
	Firewall	1.Port Forwarding;2.DMZ;3.Remote WAN Ping4.Remote WAN Ping; 5.Remote Web Access Control
	Security	Open (Unsecure);WEP 64 – 5 ASCII characters or 10 HEX characters;WEP 128 – 13 ASCII characters or 26 HEX characters;WPA Personal / PSK (TKIP) – ASCII string, 8 to 63 characters in length; WPA Personal / PSK (AES) – ASCII string, 8 to 63 characters in length
	WIFI TX power output (dBm) (Max)	18dBm
	Configuration Wizard	Support
	Time Zone Configuration	Support
	LED for LTE Link Diagnostic	Support
	System log	Support
	Firmware Verification	Support
	Certificate Manager	Support
	Diagnostic & Monitoring	Support
	4G Status	Signal,RSSI,IP Address,Connected Time,IMSI,IMEI,ICCID,BAND,CELL ID,PCI,RSRP,RSRQ,Connected USERS'S IP(Accept or blacklist)
	SIM Lock	Support
	WAN Fallback to ETH	Manually
	HTTP	Support
Certification		Depends on customization, cost related
Environment	Operating Temperature	Normal:-10°C to +65°C;
	Storage Temperature	-20° C to +85° C
	Humidity	5%~ 95%
